NXT BLD (Next Build) and NXT DEV (Next Development) 2025, a dual-focus conference from AEC Magazine, included several sessions on a relatively new topic in the AEC world: autodrawings. Also called automated drawings or autonomous drawings, these are CAD drawings that are automatically generated from BIM models — saving users substantial time and effort in the essential step of creating project deliverables.
Robert Graebert, CTO at Graebert GmbH, gave a presentation on the subject titled, “Autodrawings — Fast, Cloud-Ready DWG Production for BIM.” His presentation discussed the automation capabilities that are already available in Graebert’s own ARES Commander and ARES Kudo, and have also been integrated into other developer’s products, including Snaptrude, DraftSight Premium, and Qonic.
Cloud CAD has been around for ten years, Robert noted, and it is now entering a new phase with the integration of automation technology — an evolution that Graebert is spearheading. He described the phases this way:
Phase 1, Desktop: “Very powerful, but isolated; I work locally, I work alone, but I get all the benefit of my local resources.”
Phase 2, Connected Cloud: “[Onshape] really showed that you could do full CAD operations in a browser, and that brought all these benefits of connectivity, multiplayer, and just being together. But fundamentally, what you were doing was still very similar to what you would do on desktop, [in terms of] the way you interacted with the product.”
Phase 3, Automated Cloud: “I do believe the value becomes even greater … it’s not just about editing in a browser, multiplayer, but also [about being] much more productive.”
Robert also explored the following “universal headaches” in his presentation:
DWG deliverables are still mandatory in the AEC world;
Token licensing is an expensive way to deal with occasional users; and
Simply exporting BIM to DWG isn’t enough, because the BIM model continues to change.
This article provides an overview of key points, but you can watch the entire talk by Robert Graebert, as well as other recorded presentations, on the NXT BLD and NXT DEV conference website. (If you haven’t attended a NXT conference in the past, you will need to register for a free account on the site before you can view the presentations.)
Headache #1: DWG Drawings Are Not Going Away
Although they may perform their design work in BIM, firms still need to provide their deliverables — to contractors, owners, or facilities management professionals — in DWG format. “That, I think, is a problem that’s not going to go away,” Robert Graebert predicted.
So what’s the best solution for this persistent headache? Turn it from a time-consuming hassle to a hands-off project that’s completed automatically. Robert walked the audience through the simple steps for using ARES Kudo’s Online Drawings Automation technology:
Choose the job type from a list of preconfigured options (such as “BIM to 2D DWG Drawings,” or “BIM Data Extraction”).
Select the source file(s) in cloud storage, such as Revit and/or IFC BIM models.
Define parameters such as sheet size.
Specify whether it will be a one-time or recurring job, and schedule the job for a future time/date if desired.
Choose the destination for the files that will be produced by the automated process.
Progress status is displayed for each job in the queue, and optional email updates let users know when their job is complete.
This drawing (above) was generated in Qonic from a BIM model (top), using Graebert automation technology. In addition to being automatically generated, it was also auto-labeled, auto-styled, and auto-dimensioned.
Headache #2: Occasional Usage Can Be Surprisingly Expensive
“We’re working now in a world where we have all these different tools, and I think specifically when you have occasional usage, there are some pricing issues that we should talk about,” Robert Graebert noted. He explained that the replacement of floating licenses with named licenses for all AutoCAD users, and Autodesk’s introduction of Flex Tokens for occasional use, can result in high costs for companies that have occasional CAD users.
In his example of professionals who need to interact with DWG content for just one hour per week, “that adds up over a year to thousands of euros or dollars” for a single user. “Then [multiply that] by a thousand people, and it quickly goes into the millions,” Robert said.
He went on to describe an alternative approach, which Graebert offers for users who don’t need CAD all day, every day: the ARES Trinity Flex Cloud license. This type of license is basically floating or concurrent named user licensing, Robert explained: “You still log in with your account, but you are only using the license for the amount of time you’re actually using it.” While the numbers vary depending on the amount of use per person and the number of part-time users within a company, “we see at least a 10x reduction” in software costs for those types of users, he said.
Headache #3: The BIM Model Evolves After Drawings Have Been Created
“The old idea that you have a BIM, you create a drawing, and then you just finish that and send it off is sort of broken, because the BIM keeps changing, the 3D geometry keeps changing — so we think it’s really important that that connectivity stays in place,” Robert Graebert said.
The answer here is to incorporate BIM intelligence inside the DWG files, and to retain the link between the originating model and the drawings generated from it. “What’s important is that these drawings that we showed really are not dumb drawings; they contain references to the original BIM data … if it’s in the model, we’ll consume it.”
When the BIM is updated, the DWG drawings can be updated accordingly — without being recreated. And if CAD users add information to the DWG files after they are generated, that is preserved through any updates. “If you changed the model and you made certain annotations or you added something, everything is associative, and so they will move; if you move a wall, it doesn’t matter, everything you did in CAD will level up. That’s really important: productivity does not get lost because you’re just redrawing, redrawing, redrawing,” Robert said.
Download 30-day trial of ARES Commander CAD Software
Visit www.graebert.com/try for a free, 30-day trial of the ARES Trinity of CAD software, including ARES Commander, ARES Kudo, and ARES Touch.
Let’s own up to it: the construction and architecture business was once a sort of sloppy beast. Piles of blueprints, miscommunication, revisions ad infinitum—playing a game of never-ending telephone, except with steel, concrete, and multi-million-dollar contracts. Along came BIM—short for Building Information Modeling services—a name that sounds ominously like something your IT guys might grumble about, but actually changed the entire AEC (Architecture, Engineering, Construction) business.
BIM isn’t software. It’s not simply a 3D model. And it’s certainly not some new acronym to bandy about during client presentations to appear clever. Consider BIM like the digital DNA of a building—an intelligent system that allows your building to come to life before a single brick is placed. But let’s not jump ahead of ourselves. To comprehend the basics of BIM and exactly what Cad Crowd’s model design services at BIM firms really do, let’s first take a look under the digital hood.
🚀 Table of contents
What exactly is BIM?
Ask ten people to explain BIM, and you’ll likely hear everything from tech buzzwords to puzzled guesses. But here’s the clear truth: Building Information Modeling (BIM) is not just fancy software or 3D design—it’s a smart, collaborative process that spans the entire life of a building. From that first doodle on a café napkin to the day the wrecking ball swings, BIM helps manage it all.
So, how is BIM different from conventional design software? It’s much more than simply drawing lines and shapes. Imagine designing a skyscraper. Rather than merely writing static blueprints, you’re creating a dynamic, digital model that holds actual information. That model is aware of the wall thickness, the type of material the insulation is composed of, the weight of the steel beams, the flow of the HVAC system, and even the duration of the construction.
Every component in that model, every beam, light fixture, and duct, contains embedded information. This is where it gets truly powerful: everything is interconnected. Changing the window size or altering materials updates the entire system. Floor plans, elevations, cost estimates, and material lists are all updated automatically.
That’s the real benefit of BIM: coordination in real time, better decisions, fewer errors, and improved communication among architects, engineering firms, contractors, and owners. It makes buildings smart systems before they are constructed—and that is not only smart, it’s revolutionary.
BIM modeling design services: What do these companies actually do?
Picture yourself stepping onto a construction site—except that instead of concrete and steel, it’s constructed of blocks and Legos. It’s more data, more precision, and a detailed virtual model that’s aware of everything in the building, from the last bolt to the last duct. That’s the environment in which Building Information Modeling (BIM) design service providers work. They’re essentially a combination of virtual architects, engineers, and project managers, with high-powered modeling software that allows them to model every aspect of a building prior to the laying of a single brick.
At the center of it all is the model itself—a highly detailed, multi-faceted digital twin of the future building. Rather than using two-dimensional blueprints, stakeholders can navigate an intelligent, dynamic model that recounts the entire narrative: how everything is connected, how much it will cost, when it will be constructed, and how it will perform in the long term.
They begin by creating precise 3D models that encompass architectural, structural, and MEP (mechanical, electrical, plumbing) systems. They then perform clash detection—pinpointing any clashes or overlaps before they turn into costly on-site problems. That model also does math, generating correct quantity takeoffs and estimates so budgets remain on target.
Then comes construction sequencing, where timelines are visualized in 4D, allowing teams to plan who does what, when, and how. Tack on 5D cost modeling and even 6D facility management integration, and you’re looking at a full lifecycle digital roadmap—from the initial design concept to long-term building maintenance for architectural design firms.
So, what exactly do BIM companies do? They add clarity to complexity. They transform static plans into smart models. And perhaps most importantly, they enable everyone from architects to building owners to make smarter, faster decisions every step along the way.
3D modeling: Drawing with brains
2D CAD drawings were all the rage, but using them now is like having a flip phone when everyone else has smartphones. That’s where 3D modeling comes in—not merely an aesthetic boost, but an intelligent design revolution. With Building Information Modeling (BIM) software such as Revit, ArchiCAD, and Navisworks, projects aren’t simply drawn; they’re built digitally with intelligence.
These 3D models are more than nice pictures. They’re high-information environments where each piece of information knows who it is, what it does, and how it relates to the larger system. A wall isn’t a wall—it knows its material make-up, thickness, price, and even how much paint it will take. HVAC systems know their air flow requirements. Structural members report their load capacity and cost per square meter.
The great news? Everything is linked. Alter one component—a wall extension, for example—and everybody’s information updates instantly. Architects, engineers, interior design experts, and quantity surveyors are in sync without a problem. No yucky back-and-forth, no mistakes from miscommunication. Just smooth collaboration fueled by intelligent modeling.
It’s not sorcery. It’s BIM at its finest—transferring conventional drafting to a dynamic, smart process that thinks as intently as it draws.
Clash detection: The digital bouncer
Envision your HVAC duct run right through a structural beam. In conventional construction, this type of clash would not reveal itself until tradespeople were already onsite, leading to eleventh-hour redesigns, growing frustration, and colorful outbursts. Better times are quickly disappearing thanks to Building Information Modeling (BIM).
BIM brings a proactive solution with a process known as clash detection. BIM coordination software blends architectural, structural, and MEP models into one digital space. They then behave like a hyper-vigilant referee, flagging items immediately that are on a crash course, long before materials are ordered or boots touch the ground.
This isn’t merely a matter of catching errors; it’s optimizing workflows. By pinpointing and fixing problems early on, clash detection eliminates the expensive delays and rework. The payoff? Smoother schedules, lower stress, and way happier clients.
Consider clash detection the virtual bouncer at the front door of your construction site—preventing conflict before it even enters. For BIM modeling firms, it’s one of their strongest value-adds, converting what used to be a building nightmare into a clever, effective collaboration. And the beauty of being able to do all this is that none of it takes place until after the first wall has been constructed.
4D BIM: Construction sequencing for control freaks (In a good way)
If you’ve ever witnessed a building site go from nothing to utter chaos in seven days, you’ll know why timetabling is crucial. 4D BIM brings time into the model. This enables teams to model the build process step by step, day by day, demonstrating precisely how the building will be constructed—foundations first, followed by the steel frame, then glass curtain walls, then interior glitz.
This isn’t for entertainment purposes only, although seeing it happen is strangely pleasing. It enables project managers to identify inefficiencies, schedule deliveries, steer clear of scheduling conflicts, and facilitate trades with a level of precision that would make a Swiss watch blush.
5D BIM: The dollar signs
You know that moment when someone asks, “What’s this going to cost?” and the room falls silent? Not anymore. With 5D BIM, cost is no longer an afterthought. Every component in the model is tied to a cost item, meaning your beautiful 3D model is also a walking, talking, budget-tracking machine.
Curious about the cost-effectiveness of going from conventional glazing to high-performance glass? BIM informs you. Curious about aluminum panels vs. concrete cladding? BIM compares the numbers from 3D modeling design services and beyond. It turns guesswork into confidence. And that’s priceless—literally.
Designing and constructing is only the start. What about sustaining the building during the subsequent 30 years? BIM doesn’t end when the ribbon is cut. 6D BIM incorporates facility management information—such as warranties, maintenance schedules, and asset information—directly into the model. The structure is now a digital twin: an active representation of the actual building that grows with it over time.
7D, depending on your source, tends to mean sustainability analysis. How does the building handle various weather conditions? What’s the carbon footprint of your selected materials? You can test energy usage and environmental performance with BIM services and create green without guessing.
Collaboration: The BIM buzzword that actually means something
One of BIM’s not-so-hidden superpowers is its power to bring everyone together at the table. No more isolated workflows. No more he-said-she-said between architectural design experts and subcontractors. BIM firms tend to use Common Data Environments (CDEs)—single digital hubs where all project data is shared, updated, and followed.
Tools like Autodesk BIM 360 and Revizto make this collaboration seamless. Everyone sees the latest model. Everyone can comment, annotate, and assign tasks. It’s like Google Docs for buildings—except instead of writing essays, you’re building hospitals.
The tech behind the magic: A peek into the toolbox
Let’s discuss software. BIM design services rely heavily on a set of digital software to make all of the above work. Revit is frequently the king of the castle, with full modeling functionality in architecture, structure, and MEP. Navisworks is one of the favorites for clash detection and construction simulation. ArchiCAD has stylish software tools. Then there are specialist platforms such as Tekla (excellent for structural steel), Synchro (superb for 4D sequencing), and the constantly changing world of cloud platforms.
And yes, automation and AI are already creeping in. Few BIM companies employ scripts and plug-ins to automate tasks such as room tagging, element renumbering, or even model checking. The payoff? Quicker delivery, reduced errors, and more time for the team to engage in actual design thinking rather than copy-pasting.
What makes a great BIM company?
When you’re searching for a good BIM (Building Information Modeling) firm, glossy 3D rendering services don’t cut it. Sure, it’s great when the renderings are crisp, but an outstanding BIM firm contributes much more to the table than mere looks.
Excellent BIM firms have a larger picture in mind. They consider themselves strategically, as opposed to spatially. It’s not a matter of creating a model—it’s about assisting in creating the whole project more intelligently, from initial planning through final handoff. That involves knowing construction sequencing inside and out. They understand when things must take place, how one action impacts the next, and how to keep moving forward in an efficient manner.
Effective communication is another defining feature. These teams understand how to communicate effectively with architects, interior design services, contractors, and clients to keep everyone on the same page. They proactively alert others to potential issues before they develop into expensive headaches. Permits? Building codes? They’ve got those covered—and then some.
What actually distinguishes the top BIM companies is the extent to which they listen. No two projects are the same, and being able to listen to what the client requires—and respond in kind—is crucial. They use the BIM model as a living, changing resource, not merely something to deliver.
At the end of the day, BIM is driven by people. Behind every finished model is a group of thoughtful, informed decisions being made. It’s not about clicking on buttons in software—it’s about solving and creating value together, within a shared digital space.
So when you’re evaluating BIM services, don’t just look at the output. Look at the process, the people, and the principles driving the work. That’s where you’ll find the real difference.
When most people hear “BIM modeling,” they envision sleek high-rises or billion-dollar transportation projects. But that’s hardly the tip of the iceberg. Building Information Modeling, or BIM, has far outgrown its initial high-profile beginnings. It now impacts everything from small suburban housing developments to state-of-the-art hospitals, sprawling university campuses, and sports stadiums done by architectural site plan companies.
So, who’s really using BIM? The answer ranges across almost every aspect of the construction and design business. Real estate developers, contractors, architects, and engineers were some of the first. However, they no longer dominate the field. Interior designers, facility managers, and even furniture manufacturers are incorporating BIM into their routine operations. This shift occurs because BIM goes beyond 3D models; it employs an intelligent, data-rich approach for planning, visualizing, and coordinating every phase of a building’s lifecycle.
Think of a builder designing a green eco-hotel. Rather than cobbling things together in conventional CAD tools, they hire a BIM modeling firm to produce one coherent digital model. This isn’t a model that indicates merely where walls and windows go. It contains extensive information about MEP systems, energy efficiency requirements, material choices, and schedule timetables.
With BIM, the green hotel can be built to exacting green building standards, conserve energy, and minimize waste on site. Subcontractors can be coordinated during construction using the model, so expensive mistakes are avoided and the project remains on track. No more conflicting pipes and ducts realigned at the last minute.
And when the building finally opens its doors? The advantages continue. Facility managers can count on the BIM model for correct, current information concerning each system in the hotel. Need to switch out the HVAC units a decade later? There’s no uncertainty—they’ll know precisely where all of it is and how it fits together, not unlike architectural MEP services.
In brief, BIM is no longer the sole preserve of megaprojects. It’s a technology that’s being embraced by industries for its precision, adaptability, and potential to future-proof buildings. Whether you’re building a contemporary art museum or a prefab tiny house, there’s a high likelihood that BIM can make the process more intelligent, seamless, and environmentally friendly.
The road ahead: BIM’s evolving role
So, is this the end of the line for BIM? Not at all. The next wave is already upon us. Consider digital twins that interface with IoT sensors for real-time monitoring. Consider mixed reality overlays on construction sites. Consider AI programs that provide predictive maintenance and design optimization recommendations in real-time, leveraging the expertise of engineering design experts.
BIM is increasingly a “way we think” rather than a “thing we do.” With building complexity increasing, sustainability targets narrowing, and client expectations becoming more sophisticated, the modeling services provided by BIM firms are evolving into long-term digital relationships.
Those days of the drawing set presented at project delivery are over. The BIM model is the ongoing gift, previously, in real time, and far beyond the end of construction.
BIM is not all about technology. It’s about trust. It’s about smarter building, not merely faster building. It’s about viewing a building not just as steel and glass, but as an evolving, living being. And for BIM design firms, it’s about enabling teams to transition from confusion to clarity, from guesswork to accuracy, and from chaos to coordination for architectural design and CAD experts.
If you’re setting up a project, regardless of its size, hiring a building information modeling company isn’t a nice-to-have—it’s a competitive edge. They won’t simply give you a model. They’ll give you a roadmap, a control panel, and peace of mind in one.
Cad Crowd is here to help!
Looking to transform your next construction project from chaotic guesswork into streamlined precision? Don’t let outdated methods drain your budget with costly surprises and delays. Partner with Cad Crowd, the leader in providing professional freelance services for architectural, engineering, and design firms.
We’ll help you connect with experts proficient in BIM modeling. It’s your project’s insurance policy against miscommunication, rework, and budget overruns. Ready to build smarter, not harder? Get your free BIM consultation today and discover how intelligent modeling can save you time, money, and countless headaches from day one. Request a quote here.
MacKenzie Brown is the founder and CEO of Cad Crowd. With over 18 years of experience in launching and scaling platforms specializing in CAD services, product design, manufacturing, hardware, and software development, MacKenzie is a recognized authority in the engineering industry. Under his leadership, Cad Crowd serves esteemed clients like NASA, JPL, the U.S. Navy, and Fortune 500 companies, empowering innovators with access to high-quality design and engineering talent.
The architecture, engineering, and construction (AEC) sector is experiencing a technological revolution, and this is quite clearly reflected in the increasing number of AEC service firms on top platforms such as Cad Crowd. With AEC companies struggling to design, plan, and deliver intricate projects, the convergence of building information modeling (BIM) services and Geographic Information Systems (GIS) has become a game-changer.
Blending the benefits of both systems introduces the possibility of more precise, streamlined, and coordinated project delivery. For AEC services firms, knowing how BIM and GIS integration works—and how it affects their business—is fundamental to competitiveness in a progressively data-centric industry.
🚀 Table of contents
BIM and GIS: A quick overview
Before delving into the influence of BIM and GIS integration on the AEC industry, it’s imperative to identify what each system does and how they work as stand-alone entities.
Building Information Modeling (BIM): Building information modeling (BIM) is a digital representation of a building’s design, construction, and operational details. This is more than just a 3D model; it includes helpful information about the design’s materials, structural qualities, budget, and schedule. Preliminary design optimization, collaboration, and simulation can take place thanks to this tool, which is useful for architects, engineers, and contractors.
Geographic Information Systems (GIS): GIS is an application that captures, stores, manipulates, analyzes, manages, and displays geographic or spatial data. GIS allows experts to map and analyze terrain, land use, zoning regulations, weather, and other location-relevant factors, frequently essential when handling large-scale infrastructure or urban planning projects.
When integrated, GIS and BIM enable AEC firms to control both the micro-level specifics of building construction (via BIM) and the macro-level issues of geography and environmental conditions (via GIS). The combination of these systems provides an extensive toolset for planning and implementing projects in ways otherwise hard or impossible to achieve for architectural design firms.
The Role of BIM and GIS Integration in AEC Services
BIM and GIS integration are revolutionizing the way Architecture, Engineering, and Construction (AEC) services plan and execute projects. BIM centers on precise details of a building’s design, construction, and lifecycle, including structural and material information. GIS provides a wider geographic and environmental picture—charting terrain, infrastructure, climate, and so on.
Together, BIM and GIS present a complete picture that improves each phase of a project, from initial planning to upkeep. This combination allows AEC professionals to compare spatial and structural information at the same time, making optimal site selection, sustainability, and urban planning decisions. It leads to better collaboration between stakeholders, faster delivery schedules through data-driven processes, and less risk through early identification of problems.
Finally, BIM-GIS convergence enables companies to design more intelligently, build quicker, and operate more cost-effectively, producing projects that are not just technically excellent but also socially and environmentally responsible.
Here’s a look at how this integration enhances AEC services:
Better planning and site selection
When starting any new building project, location and site conditions take precedence. GIS facilitates AEC companies in determining the readiness of a site by offering information regarding land characteristics, environmental factors, zoning regulations, and existing infrastructure in the area. For instance, GIS may be applied to examine soil quality, flood exposure, traffic flow, or distance from utility networks. This information is critical in the determination of the most suitable location for a building or infrastructure development.
Through the integration of BIM, architects and engineering design firms are able to simulate how a proposed design would interact with the site’s geographic conditions. For example, a BIM model can simulate how a building’s foundation would perform under various soil conditions determined by GIS data. This type of simulation minimizes the chances of expensive surprises during construction and provides a more sustainable, site-suited design.
Better decision-making through visualization
The combination of BIM and GIS provides a versatile decision-making visual tool. GIS provides a topographic, spatially correct map of the project location, with BIM contributing precise 3D models of the building or structure. Merging these models, AEC firms can visualize how the building will interlink with its physical and environmental context.
For instance, architects can apply the combined models to model the effect of natural light on the building façade during the year. They can also model the air circulation or water runoff relative to the local topography. Having both building and geographic data in one place assists teams in making improved design decisions that lower energy usage, enhance user experience, and enhance the building’s resilience to environmental conditions.
Collaboration is the lifeblood of the AEC industry. In conventional workflows, architects, engineers, and contractors tend to work in separate silos and use different systems that may or may not speak to each other. This has the potential for misunderstandings, mistakes, and delays. Introducing BIM and GIS eliminates these communication problems.
When GIS data and BIM models are combined, all stakeholders—from construction workers to civil engineers—can view and update the same real-time information. For instance, an engineer can update a BIM model according to new GIS data on local zoning laws, while an architectural design expert can make adjustments to the building design to accommodate the environmental context. The outcome is a more coordinated and integrated workflow that results in fewer changes and delays later on.
Efficient resource management
Successful resource management is key to finishing any project on schedule and within budget. Using BIM’s accurate data and GIS’s spatial context, AEC firms can enhance the management of resources, including materials, labor, and equipment, throughout the project’s life cycle.
With the help of GIS, project managers can analyze the materials’ location compared to the site location, guaranteeing that logistics are optimized. BIM, however, ensures accurate quantities and material specifications, guaranteeing correct material delivery at the correct time. This coordination eliminates waste, reduces transportation expenditure, and guarantees that construction activities operate smoothly.
Increased sustainability and environmental impact analysis
Sustainability is a key focus in contemporary architecture and construction. AEC firms are being called upon more and more to adhere to environmental standards, conserve energy, and reduce their carbon footprint. Combining GIS and BIM enables companies to address sustainability in a more comprehensive manner.
Unlike BIM, which allows for comprehensive energy modeling and simulation, GIS provides a wealth of data pertaining to environmental factors, such as climatic trends, water consumption, and energy consumption. By combining the two programs, architectural planning and design companies can simulate the possible influence of different design elements on sustainability, water usage, and energy efficiency, allowing for more comprehensive evaluations of a building’s carbon footprint. Such research can make a huge difference to the efficiency and sustainability of a building over time.
The benefit of combining BIM and GIS doesn’t end when the construction process is finished. Once a building or infrastructure project is completed, these systems are still useful in the operation and maintenance phases. BIM can be utilized to monitor the status of building components over time, while GIS can track the environmental conditions that impact the building.
A facility management team, for instance, can keep track of when critical systems are due for repair or replacement with the help of an integrated GIS/BIM system. Building operations can be tracked in relation to external factors like weather and traffic patterns. By using this data, proactive maintenance can be implemented, resulting in cost savings and an extended building life.
The most common challenges of BIM and GIS integration
Though there are numerous advantages of the integration of BIM modeling services and GIS, there exist some challenges AEC companies need to address. The complexity involved in integrating two dissimilar systems with different data structures and formats is one of the major barriers. BIM and GIS solutions tend to be built by dissimilar software companies, and as such, compatibility issues may occur.
The other challenge is the accuracy and consistency of the data. GIS depends a great deal on geospatial data that is available in real time, which is prone to inaccuracies or obsolescence. Likewise, the BIM models will need to be constantly updated to accurately portray the state of the construction project as it is now. It will take great diligence to have both systems harmonized and updated.
Moreover, there is a need for training and expertise. AEC practitioners must be familiar with both BIM and GIS technologies to be able to take advantage of their full potential. This will involve investment in training courses and perhaps the recruitment of specialists to oversee the integration process.
Conclusion
The convergence of BIM and GIS is transforming the way AEC services firms tackle design, planning, and execution of projects. By merging the precise, model-based methodology of BIM with the spatial, context-aware insights of GIS, companies can make more informed decisions, enhance collaboration, increase sustainability, and streamline resource management. The potential for greater efficiency, cost reduction, and risk mitigation is vast, but achieving these benefits involves surmounting technical and organizational hurdles.
For AEC companies wanting to remain competitive in today’s cutthroat world, BIM and GIS integration investment is not merely about being up to speed with industry developments; it’s an essential tactic for producing superior projects in fewer resources, achieving client expectations, and helping build a more sustainable built environment. If you think you’re ready to take this trend, Cad Crowd is where you should start looking for specialists in BIM and GIS. Get a free quote today!
MacKenzie Brown is the founder and CEO of Cad Crowd. With over 18 years of experience in launching and scaling platforms specializing in CAD services, product design, manufacturing, hardware, and software development, MacKenzie is a recognized authority in the engineering industry. Under his leadership, Cad Crowd serves esteemed clients like NASA, JPL, the U.S. Navy, and Fortune 500 companies, empowering innovators with access to high-quality design and engineering talent.
Sustainability has been the buzzword across many industries, leading to a global effort to promote business practices that focus on environmental responsibility.
The architectural design services industry is no exception. In fact, construction activities are considered major contributors to climate change because of their tendency to consume large amounts of naturally occurring resources, generate massive volumes of demolition waste, produce enormous carbon footprints during the fabrication and transportation of materials, and basically use too much energy to build anything. Construction is resource-intensive. The bigger the project, the more energy it consumes and the more waste it generates. It’s a crushing criticism, but otherwise, pretty accurate.
Cad Crowd helps designers and firms find the best BIM modelers, while our extensive experience has allowed us to vet many top BIM design experts who value sustainability. Here’s what we learned about the impact of BIM and how it can make your projects more sustainable.
🚀 Table of contents
What exactly is sustainability?
According to the Brundtland Commission (formerly known as the World Commission of Environment), the word “sustainability” can be defined as an approach to development that fulfills today’s necessities without having to compromise the next generations’ abilities to meet their future needs as well.
To put it in the context of architecture, sustainability talks mainly about design and how to create living spaces that have minimum environmental impacts, efficient power consumption, and effective waste management. Therefore, an architectural product can be regarded as “sustainable” when it implements environment-friendly approaches to material selections, component fabrications, construction methods, power generation, building maintenance, and waste disposal. This doesn’t in any way suggest that architects only have to think about the ecological impacts of their designs; the buildings (or all other architectural products, for that matter) can still be aesthetically pleasing without losing their sustainability credentials.
It’s then no surprise that the architectural industry has become much more environmentally considerate in just about everything it does. Not only is it about addressing the persistent criticisms but also adhering to the new standards in efficiency. Thankfully, with BIM (Building Information Modeling) services, sustainable architecture is no longer a vague concept but a realistic objective.
Over the last several decades, 3D CAD (computer-aided design) software has been a major driving force in the construction industry and architectural study at large. The ability to see and modify a building as a three-dimensional model on a computer screen has played a crucial role in better workflow, increased efficiency, and improved productivity in general. You’ve probably seen some online renderings of fancy architectural concepts created using 3D CAD services, too; they’re not real buildings but only photorealistic digital assets to showcase what the software is capable of.
BIM takes the sophistication a step higher. It does everything a 3D CAD software can and adds to the equation three more variables, including time, cost, and building operation, hence 6D. When all those aspects are considered, it becomes much easier to plan for sustainability. BIM still uses 3D modeling, but the software can handle a larger dataset that includes every minute detail about the project, like Bill of Materials, off-site and onsite component fabrication techniques, potential green energy output, and power consumption from typical daily operations (such as HVAC), waste collection and recycling, and more.
In addition to three-dimensional modeling and planning, BIM helps you make well-informed decisions about everything that matters in a sustainable design. Here are just a few examples.
Eco-friendly material selection
BIM and services companies allow you to choose from a wide range of construction materials. If sustainability is of the utmost importance, you can always go with certain materials that have the lowest environmental impact. Whether or not this would be the best decision will likely depend on the materials’ overall strength, workability, and durability. For example, it might not matter much if you’re choosing between steel or recycled steel as a load-bearing structure because both options have exactly the same properties anyway. That being said, the latter remains the better option as it takes much less energy to produce than the former.
Things can also get a little bit more complicated when it comes to flooring options. For instance, your client in a residential project wants to use hardwood flooring. Hardwood is indeed renewable, but it takes decades until you can possibly replace the trees harvested to fabricate your floor. Bamboos are also renewable, and they grow much faster than hardwood trees. The good thing is that reclaimed hardwood flooring is a viable option as well, but only if your client can approve the selection. BIM only facilitates the selection. You still have to make the decision.
Not every little piece of the building component has to be assembled onsite. BIM gives you the means to manage off-site prefabrication, which often involves partial installation, before transporting the components to the main construction area. Such an approach is not exactly unique or new and has been used forever to avoid unnecessary use of space, tooling, and, yes, labor. Both modular construction and off-site prefabrication features in BIM can help your project reduce material waste, power consumption, and emissions associated with transportation. Since everything is data-driven, computerized, and visualized in 3D, you don’t have to worry about inaccuracy.
Save power with natural lights
An effective way to save power is to turn off the lights and open the windows instead, but like many other things, it turns out to be much easier said than done. BIM software, through 3D modeling services, offers countless configurations for window layouts, sizes, and positioning to give you a better idea of what configuration works best in any design. More than just a digital modeling service, BIM simulates how the windows and ventilation affect natural light penetration and heating. You can tinker with a lot of options in the software interface to find the best configuration so that the occupants don’t rely too much on artificial lighting and electricity-hungry AC. This helps reduce power consumption but without sacrificing occupants’ comfort.
One thing that separates BIM software from typical 3D CAD modeling programs is its ability to offer detailed environmental analysis of a construction project. A lot of things can affect how a building functions or consumes energy, and BIM offers a clear overview of how a building can minimize its power usage.
For example, some materials can absorb heat and retain a comfortable temperature in a house all year round without having to use too much power for heating and cooling. When the temperature outside fluctuates, “thermal mass” materials like concrete or stone masonry help keep the inside temperature steady; drywall made of PCM (phase-change material) has also been found effective in reducing HVAC power consumption. And if the budget allows, water (such as a small indoor pool) has an excellent thermal mass as well.
Another important part of environmental analysis is the feasibility of solar panel installation. Based on the building/house orientation, elevation, and the topographic maps of the area, BIM might be used to measure sunlight duration and the potential amount of solar energy absorbed by a building’s roof and facade. BIM is not actually a solar modeling software, but it comes with capable features to offer useful insights into solar feasibility. You might need additional data, such as solar irradiation and PV cell specifications, to get more accurate results. If you happen to partner with BIM service providers based in the United States, most of them have additional tools to create a detailed simulation for solar panel installation, energy output estimation, and efficiency rate.
You can say that everything about BIM forces you to be proactive in finding the right solutions to achieve sustainable architecture. Its three-dimensional modeling allows you to be creative in design optimization, whereas the environmental analysis opens the door to maximum energy efficiency. The good thing is that BIM does it all not only over the course of the construction activities but continuously even after the building is completed.
The integration makes it easy to devise computerized (automated) monitoring for any building. For example, you can set a predetermined range of power consumption or solar energy generation; if the data falls outside of the range, it’s a sign that there’s a problem with the electrical system. It can be a faulty appliance, loose connection, wiring issues, etc. Thanks to early problem detection and constant monitoring, the building manager can pinpoint the root of the problem before the efficiency suffers too much.
Sustainable architecture is all about creating green designs that blend resource conservation and energy efficiency. The challenge is to make sure that all the reductions in power consumption and the use of non-renewable materials do not negatively affect the occupants’ well-being. And when the architectural planning and design firm’s focus is on environmental concerns, chances are you can’t do much better than tapping into the power of BIM software to help plan and monitor the entire project. At the end of the day, BIM is more than just a software, but a state-of-the-art methodological approach to sustainability that’s applicable at any stage of a project, from design and construction to building operation and maintenance.
BIM professionals at Cad Crowd
Although it’s easy to throw around the terms “sustainable architectures” and “green buildings” when planning for a project, creating a design that does prioritize resource conservation, functionality, and comfort at the same time is a monumental task. BIM is great and all, but you can only make it work to its full potential in the hands of a professional.
Cad Crowd is home to experienced BIM service providers in the United States. Every firm and independent freelancer in Cad Crowd has been vetted for technical skills, educational background, and BIM expertise to ensure their abilities to work effectively as part of your team.
MacKenzie Brown is the founder and CEO of Cad Crowd. With over 18 years of experience in launching and scaling platforms specializing in CAD services, product design, manufacturing, hardware, and software development, MacKenzie is a recognized authority in the engineering industry. Under his leadership, Cad Crowd serves esteemed clients like NASA, JPL, the U.S. Navy, and Fortune 500 companies, empowering innovators with access to high-quality design and engineering talent.
A contractor’s guide to Capitalize on the Industry’s Explosive Growth to $34.2B by transforming Projects with 40% Higher Efficiency.
Autodesk, a key player in the technology world, recently pledged to enhance Building Information Modeling (BIM). This innovation is steering a significant shift in the construction industry. You might wonder, how does this affect my project completion, daily work, and, ultimately, my profits?
BIM Autodesk advancements is an innovative approach that allows us to create digital representations of physical spaces and enhance their functionality. Think of it as a 3D blueprint, only supercharged and in-depth, which can be used throughout construction. BIM is transforming the AEC industry by promoting teamwork, streamlining processes, and ensuring projects are completed with precision.
Here’s a striking reality about construction costs that often catches owners off guard: a staggering 60% of a building’s total lifetime expenses go straight into operations and maintenance. This eye-opening statistic underscores why implementing BIM Autodesk solutions from project inception is crucial. Beyond streamlining the construction phase, BIM Autodesk technology creates a comprehensive digital foundation that dramatically improves building maintenance efficiency and cost-effectiveness throughout its entire lifespan. Smart contractors who embrace this approach aren’t just building structures – they’re delivering long-term value that clients can’t surpass.
In this blog post, we’ll explore Autodesk’s latest BIM improvements, what they mean for the AEC industry, and how BIM Autodesk is setting new benchmarks in helping Contractors and real estate project managers and facility management companies maximize these advancements for optimal results. Whether you’re a seasoned professional or a beginner in the construction sector, stay tuned for some fascinating updates!
Overview of Autodesk’s BIM Advancements

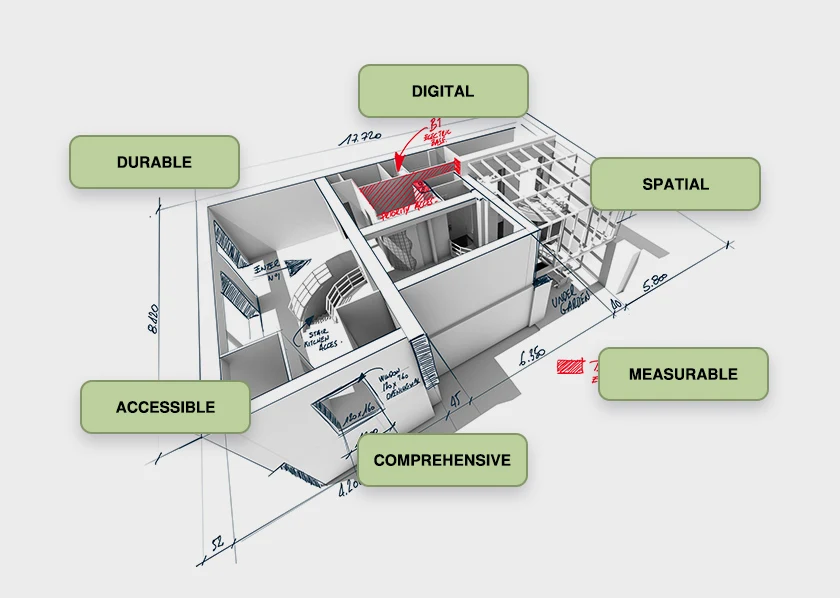

BIM Features: Illustration of Building Information Modeling Technology features
Here’s a closer look at the BIM’s recent enhancements:
Increased Investment in BIM
The BIM market is experiencing remarkable growth, with current valuations at $7.9 billion (2022) projected to reach $34.2 billion by 2032, growing at a CAGR of 16%. This rapid expansion demonstrates the increasing recognition of BIM’s potential across the construction industry.
Autodesk is allocating significant resources towards BIM’s evolution. This substantial investment aims to:
Improve automation of routine tasks.
Drive efficiency in design and construction.
Support industry adaptation to digital workflows.
Let’s take a quick glance at the key areas of Autodesk’s BIM investment:
Investment Focus
Expected Outcome
AI and Machine Learning
Increased automation and predictive analytics.
Enhanced Cloud Collaboration in Construction
Real-time data sharing and seamless communication.
Improved Interoperability
Smoother cross-platform integration for flexibility.
Cost reduction
Significant reduction in material wastage and over-budgeting
Timeliness
Big-time change in managing the delivery timelines from each aspect of your project
Integration of AI and Machine Learning
Autodesk’s integration of AI enables BIM models to learn from previous projects, identifying patterns to enhance efficiency and precision. With AR and VR technologies rapidly advancing and expected to reach 6,786.0 million users by 2027, the integration of these technologies with AI-powered BIM can create powerful new capabilities.
Key benefits include:
Automated Design Adjustments: AI in BIM automatically suggests improvements, optimizes designs and reduces manual errors. This ensures higher accuracy and efficiency in project planning.
Predictive Analytics: Machine learning leverages historical data to anticipate potential problems before they occur. This proactive approach helps identify risks, improve decision-making, and reduce costly delays or rework.
Improved Accuracy: AI and machine learning with VR/AR capabilities enhance precision in design and construction processes, leading to better outcomes and increased client satisfaction.
Enhanced Cloud Collaboration
Incorporating robust cloud collaboration capabilities into Autodesk’s BIM tools has proven indispensable and useful for contemporary construction endeavours. Cloud-driven environments expedite live data transmission, allowing project members across diverse areas to team up seamlessly. This progression ensures that everybody, ranging from architects, engineers, and consultants to builders, can instantly examine and react to amendments, promoting transparency while augmenting productivity.
This quality is invaluable for companies like IndiaCADworks, which routinely manage projects involving numerous stakeholders, ensuring timely results and improved synergy among diverse groups. This also helps us envision a project’s weak/strong points from multiple standpoints.
Autodesk’s cloud solutions, like Autodesk Construction Cloud, have redefined collaboration by:
Allowing real-time data access and updates for global teams.
Centralizing project files for better version control.
Supporting instant feedback loops and swift decision-making.
Improved Interoperability
BIM Autodesk’s commitment to seamless platform connectivity sets new industry standards for cross-tool compatibility. This enhanced interoperability means architects, engineers, and contractors can finally bid farewell to those frustrating data transfer headaches. Project teams can now share complex building information across different software platforms without losing critical details or wasting time on manual data entry.
Take, for example, how BIM Autodesk models now flow effortlessly between design tools and construction management software. This smooth data handoff creates an unbroken digital thread from the initial concept through project completion. By breaking down traditional software barriers, Autodesk isn’t just improving workflow efficiency—it’s revolutionizing how construction teams collaborate and execute projects in real time.
Autodesk has enhanced compatibility across platforms, tools, and formats. This ensures that BIM models:
Integrate Seamlessly with other software, allowing more collaborative possibilities.
Enable Data Continuity across different stages of a project lifecycle.
Embracing Tech Evolution in Construction: How BIM Autodesk Advancements are Steering Change
In architecture, engineering, and construction (AEC), Autodesk’s latest Building Information Modeling (BIM) updates are set to tackle some persistent industry challenges. These advancements promise to deliver efficient, cost-effective, and transformative solutions specifically tailored for construction managers, contractors, and real estate project managers.
Addressing Collaboration Challenges
One of the common headaches in the construction industry is the coordination among architects, engineers, and contractors. Any miscommunication or misunderstanding can lead to costly inefficiencies. This is where the power of BIM Autodesk steps in. BIM’s real-time collaboration tools ensure seamless integration of design and execution, minimize misunderstandings between teams, and enhance stakeholder communication. The future of construction technology lies in such cloud collaboration processes, streamlining all construction management aspects.
Minimizing Design and Construction Errors
Inaccuracies in design and execution can often result in costly rework and project delays – a pain point that BIM Autodesk aims to address. Autodesk’s BIM software for construction management offers automated clash detection through Navisworks, spotting conflicts between different design elements for quick correction. Revit enhances design validation with precise modeling, ensuring accuracy from the outset. Meanwhile, BIM 360 provides built-in inspection tools to ensure compliance with design standards. These features work together to enhance the precision of project execution, reducing costly mistakes and improving project outcomes.
Simplifying Complex Project Management
Managing a construction project is a complex task with multiple cogs in the wheel. Autodesk’s BIM updates aim to simplify this process, providing integrated solutions for efficient project management. BIM 360, for instance, offers dynamic project timelines, allowing managers to track progress in real time. It also provides comprehensive budgeting features and auto-updating cost estimates as project elements evolve. Additionally, Navisworks, AutoCAD, and Civil 3D allow for efficient management of site resources, reducing waste and maximizing efficiency.
In essence, the recent advancements of BIM Autodesk are revolutionizing construction management. By harnessing the power of these tools, construction managers, contractors, and real estate project managers can optimize their projects, work more efficiently, and ultimately deliver better results. Stay tuned to this space for more exciting updates on the future of construction technology!
Leveraging Autodesk’s BIM Advancements to Overcome Construction Management Challenges
While BIM adoption continues to grow globally, implementation challenges persist in emerging markets, where studies suggest over 40% of AEC professionals have never used BIM software, and only 30% utilize it for 3D modeling. This highlights the critical importance of accessible, user-friendly BIM solutions.
Contractors and construction project managers particularly, continually grapple with intricate challenges, such as managing project timelines, allocating resources efficiently, ensuring compliance with regulations, and minimizing the cost of construction material and time wastage. Autodesk’s BIM advancements are engineered to address these issues, revolutionizing the future of construction project management.
Let’s look at how these BIM Autodesk updates will help
Delays in construction projects can lead to significant financial losses and strained stakeholder relationships. Autodesk’s advanced BIM solutions empower professionals to meticulously plan, monitor, and adjust project schedules in real-time.
Key Features and Benefits:
4D BIM Modeling: By integrating time-related data into 3D models (4D BIM), project managers can visualize construction sequences over time, identifying potential scheduling conflicts before they become issues. BIM technology has evolved beyond 4D, advancing all the way to 7D capabilities.
AI-Powered Scheduling: Artificial Intelligence (AI) in BIM predicts potential delays by analyzing historical data and current project parameters, enabling proactive adjustments to the project timeline.
Real-Time Collaboration: Enhanced cloud collaboration in construction allows team members to access up-to-date models and documents from anywhere, ensuring everyone works with the latest information.
Impact on Contractors and Project Managers:
Contractors and construction managers can better coordinate activities, reducing idle time for crews and equipment. Real estate project managers gain a comprehensive overview of the project’s progression, allowing for timely decision-making and stakeholder updates.
Optimizing Resource Allocation Through BIM Innovations
Efficient resource management is crucial for controlling costs and maintaining project momentum. Autodesk’s BIM advancements provide detailed insights into resource utilization, ensuring optimal allocation.
Advanced BIM Capabilities:
Detailed Quantification: BIM software for construction management offers precise quantification of materials, labor, and equipment needed, minimizing overordering or shortages.
Resource Simulation: AI in BIM can simulate different resource allocation scenarios, helping managers choose the most efficient option.
Automated Updates: Changes in design or scope automatically update resource requirements, keeping all project aspects synchronized.
Site Management: BIM enables comprehensive site logistics management through real-time monitoring, layout planning, and coordination of activities, ensuring optimal resource utilization and safety compliance.
Benefits for Stakeholders:
Contractors: Reduce material wastage and optimize labour deployment, enhancing profitability.
Construction Managers: Gain clarity on resource needs, facilitating better planning and supplier negotiations.
Real Estate Project Managers: Ensure resource allocation aligns with project budgets and timelines, safeguarding investment returns.
Building Owners: BIM reduces costs by minimizing errors and provides insights for long-term maintenance, boosting asset value and returns.
Ensuring Compliance with Regulations Using BIM Technology
Navigating the complex web of construction regulations can be daunting. Autodesk’s BIM advancements simplify compliance through intelligent features.
Compliance-Enhancing Features:
Automated Code Checking: BIM models, when paired with advanced plugins, can assist in checking compliance with specific building codes, identifying potential non-compliance early in the design phase. However, full automation of code compliance remains in development and typically requires human oversight.
Regulation Updates Integration: BIM software stays current with regulatory changes, ensuring ongoing compliance throughout the project lifecycle.
Comprehensive Documentation: Detailed reports and documentation generated from BIM models facilitate smoother approvals from authorities.
Minimizing Material and Time Wastage with AI-Enabled BIM
Material wastage and time delays are significant contributors to inflated construction costs. Autodesk’s BIM advancements, powered by AI, address these challenges head-on.
Strategic Solutions:
Clash Detection and Resolution: Advanced BIM solutions identify and resolve design conflicts before construction begins, reducing rework and material waste.
Predictive Analytics: AI in BIM forecasts potential issues that could cause delays, allowing teams to mitigate risks proactively.
Optimized Workflows: Cloud collaboration streamlines communication, ensuring that all team members are aligned and tasks are executed efficiently.
Impact on Costs and Efficiency:
Challenge
Traditional Approach
With Autodesk BIM Advancements
Resulting Benefit
Material Wastage
Stems from estimation errors, while poor coordination among subcontractors
Accurate material quantification
Up to 20% reduction in material costs
Time Delays
Reactive issue resolution
Proactive planning with AI predictions
Up to 25% reduction in project timelines
Compliance Rework
Manual code compliance checks
Automated rule-based compliance checks
Significant decrease in non-compliance issues
Communication Breakdowns
Disparate communication channels
Centralized cloud collaboration
Improved team coordination and efficiency
Empowering Each Stakeholder with Autodesk’s BIM Innovations
Contractors
Autodesk’s BIM advancements provide contractors with tools to enhance precision and efficiency.
Improved Estimations: Accurate models lead to better cost and time estimations, aiding in competitive bidding and budgeting.
Enhanced Coordination: Real-time updates and clash detection prevent on-site conflicts, reducing delays and disputes.
Construction Project Managers
Project managers benefit from comprehensive oversight and control features.
Integrated Project Management: Centralized information allows for seamless tracking of progress, budgets, and resources.
For real estate professionals, BIM offers long-term value beyond construction completion.
Lifecycle Management: BIM models serve as a repository for all building information, aiding in maintenance, renovations, and eventual sale.
Investor Confidence: Detailed planning and risk mitigation increase investor trust and project attractiveness.
Property Owners
Autodesk’s BIM solutions offer property owners long-term benefits that extend well beyond the construction phase.
Operational Efficiency: BIM models streamline building operations by tracking energy use, maintenance, and performance, leading to reduced costs over time.
Asset Management: BIM centralizes building data, enabling property owners to manage upgrades, renovations, and maintenance effectively, preserving long-term value.
Conclusion: Pioneering the Future of Construction with Autodesk BIM and Strategic Partnerships
Autodesk’s commitment to enhancing Building Information Modeling (BIM) is driving a significant shift in the construction industry. By addressing critical challenges like project delays, resource mismanagement, regulatory compliance, and wastage, these innovations serve as catalysts for transformation.
However, integrating these advanced BIM solutions can be complex and resource-intensive. Many companies find it more efficient and cost-effective to outsource certain aspects of BIM—such as detailed modeling, clash detection, and content creation—to specialized partners. This approach allows firms to leverage expert knowledge without the overhead of maintaining extensive in-house teams.
The Road Ahead with Strategic BIM Partnerships:
Embracing advanced BIM solutions is essential for professionals aiming to stay competitive and deliver excellence. By collaborating with experienced BIM service providers likeIndiaCADworks, well-versed in Autodesk for construction, contractors, construction managers, and real estate project managers can maximize the benefits of these technologies. Such partnerships facilitate smoother implementation, ensuring projects are completed efficiently and to the highest standards.
Tangible Benefits of Outsourcing BIM Services
To illustrate the advantages of outsourcing BIM services to companies like IndiaCADworks as compared to handling them in-house, consider the following comparison:
Aspects
In-House BIM Management
Outsourcing to BIM Specialists
Tangible Benefits
Initial Investment
High costs for software licenses and training staff
Lower upfront costs with flexible service models
Up to 40% reduction in initial expenses
Expertise Level
Limited to in-house team’s experience
Access to a broad range of specialized experts
Enhanced quality and innovation in deliverables
Resource Allocation
Full-time staff commitment
Scalable resources based on project needs
Increased flexibility and efficiency
Turnaround Time
Potential delays due to workload and learning curves
Faster completion leveraging expert workflows
Up to 30% reduction in project timelines
Technology Updates
Additional costs for continual software updates
Specialists provide latest Autodesk BIM updates
Stay current with cutting-edge BIM advancements
Risk Management
Higher risk of errors and compliance issues
Specialists ensure adherence to regulations
Reduced risk and enhanced compliance
Cost of Errors
Potential for costly mistakes requiring rework
Experienced teams minimize errors
Up to 25% savings by reducing rework and wastage
Quality Management
Limited to the in-house team’s scope and experience.
Access to specialized experts ensures consistent, high-quality results.
Improved accuracy and compliance, ensuring high-quality BIM models.
Moving Forward:
As the industry advances towards greater digitization and collaboration, combining Autodesk’s BIM advancements with strategic outsourcing offers a powerful pathway to efficiency, sustainability, and success. Engaging with leading partners like IndiaCADworks enables industry professionals to overcome challenges, optimize resources, and deliver exceptional results in the ever-evolving landscape of construction technology.
Building Information Modeling (BIM) is now an indispensable tool for more and more building projects in today’s quickly evolving architecture, engineering, and construction (AEC) industry. However, what does the future hold for this field? What trends should you watch out for?
BIM modeling services are changing the AEC industry in ways you may not know. From enhanced efficiency to improved collaboration, there’s no denying how beneficial BIM is. This article explores the emerging BIM modeling trends for companies.
BIM modeling adoption
What’s the effect of BIM modeling adoption on manufacturers? BIM is critical as more and more companies, governmental entities, and private clients recognize its value. Architects, engineers, and interior designers have started to adapt their practices to integrate BIM technology into their work.
The professionals turn to BIM objects that manufacturers, EPDs, and LCAs provide for accurately assessing their designs and environmental impact. BIM adoption is vital for manufacturers to stay competitive and adhere to the increasing demand for BIM objects in construction projects.
Artificial Intelligence (AI)
Integrating AI with all its promising benefits is starting to change the construction industry. Manufacturers are among the main stakeholders that this trend will affect sooner or later. With the help of AI algorithms, it will be easier for manufacturers to analyze all project data, acquire insights into their products’ performance, and reach data-driven decisions for their improvement.
When used in the construction industry, AI can help monitor performance and detect problems before they occur. This also improves quality control and can come in handy for analyzing vast quantities of data and determining patterns that will further optimize the design and construction process.
For example, artificial intelligence can be used to examine data that can help predict possible delays in the schedules of construction projects. Tools powered by AI, like chatbots, can also be a great help for customers as well as other stakeholders. These tools can answer questions that can improve the overall satisfaction of customers and reduce the workload on the part of the customer support teams. If you still find these lacking, AI is also great at analyzing data on building components and materials to pinpoint areas with room for sustainability, efficiency, and cost improvement.
Automation
Automation is also an emerging trend expected to transform the BIM world. Construction automation uses applications, robots, and digital processes to achieve and complete tasks with the least human input. Automation has numerous perks, including being more cost-effective and reducing safety hazards.
Automating the BIM model production process allows manufacturers to collaborate more effectively with engineers, architects, and other stakeholders involved in the construction process. The use of automation in BIM helps the manufacturing process as well. Automation technologies like sensors, AI, and robotics enable manufacturers to improve the quality of their products and streamline the production process. These can lead to better adaptability and flexibility in changing the requirements for production. It allows manufacturers to better cater to the demands of the construction professionals who use BIM.
It’s a big no-no for manufacturers to fail to adhere to BIM mandates now more than ever. BIM mandates are a requirement instead of a mere option in the construction industry because of their numerous benefits, including increased efficiency and better project outcomes. Technological advancements aren’t the only ones that drive the trend; even politicians strive to improve a country’s competitiveness, productivity, and environmental and social welfare.
Manufacturers can enjoy a strategic edge by adhering to BIM mandates and coming up with BIM content to enhance their product offers and better meet the needs of their customers. Manufacturers must keep up with the newest BIM requirements to stay competitive.
Cloud-based technology
Numerous benefits are associated with cloud-based BIM, such as real-time updates, accessibility, and improved collaboration. Information management is a vital benefit where BIM objects play a significant role. Thanks to this technology, building project stakeholders can update and access BIM models worldwide to collaborate on projects.
Manufacturers can make the most of this trend by ensuring their products are accessible on cloud-based BIM platforms. As a result, it will be easier for stakeholders to have their products integrated into BIM models. Real-time updates are also available on cloud-based BIM to help teams keep up with progress and project changes.
On the other hand, using onsite premises may require stakeholders to work with obsolete information or wait for updates, leading to errors and delays. With cloud-based BIM, stakeholders can access the most updated information about the project and engage in real-time collaboration. This trend will likely continue as cloud-based technology infiltrates other industries. As an increasing number of stakeholders welcome the idea of using cloud-based BIM, it’s expected that accessibility and collaboration will further improve, thus transforming the construction industry as a whole.
Prefabrication
Prefabrication is an up-and-coming trend that might already be familiar among manufacturers. Prefabrication and BIM are similar to two peas in a single pod. The prefabrication process involves the offsite creation of building components and assembling them on the site.
During prefabrication, BIM has a critical role to play as it lets manufacturers develop digital models of the components that allow easy integration into the building model. Manufacturers can enjoy numerous benefits from using BIM during prefabrication. These include accuracy, increased efficiency, and better collaboration with the rest of the stakeholders.
All of these allow quicker and more efficient onsite assembly of the components. Combining BIM with prefabrication will enable manufacturers to seamlessly develop components fitting into the building model.
Internet of Things (IoT)
Greener, faster, and better building processes are what BIM is all about. Stakeholders can take advantage of sensors and IoT to gain insight into the operation of their building projects. The construction industry can use IoT to control and monitor building systems and automate repair and maintenance tasks for improved safety at work.
Integrating IoT data with BIM software can give construction professionals more detailed and accurate information on the building systems’ performance, including lighting, product design, and other equipment. Manufacturing services can also use IoT to understand the needs of end-users and construction professionals to develop improved products that cater to their customers’ competitive needs.
Digital twins
As digital twins continue rising in popularity, the construction industry is also set to enter a new dimension of simulation and design. Digital twins can be likened to replicas of physical assets like machinery or buildings, which help stakeholders view and assess the performance of their structures in various scenarios. Digital twins can provide real-time data that optimize performance, improve decision-making, and anticipate maintenance needs before they happen.
Digital twins can accurately predict and simulate the behavior and operation of a product according to conditions in the real world. It allows manufacturers to come up with educated decisions regarding support and maintenance needs that optimize the performance of a product. This reduces rework and waste, hastens the design process, and enhances the product’s overall quality. The identification of possible bottlenecks before they happen is among its significant benefits.
The rise of augmented reality technologies significantly impacts BIM processes. These are starting to be further integrated into the construction industry to provide various means of interacting and visualizing BIM data. The technologies allow picturing and simulating construction projects so stakeholders can understand them before construction.
Virtual augmented reality is a technology that will enable easier and faster inspection of large-scale 3D models to offer stakeholders a clear and comprehensive image of the development and design process. The technology is also expected to improve the BIM modeling process in the future by providing a comprehensive look at the different stages of the design process.
It’s an impressive way of presenting designs and products to customers to give them a chance to understand better what they will get before deciding to buy. Virtual augmented reality also allows visualization of product designs and improved collaboration among project teams. This cuts down errors and enhances the overall quality of the project through the identification and resolution of problems before the start of construction.
How Cad Crowd can help
Possibilities are almost infinite as far as the future of BIM modeling for AEC companies is concerned. Cad Crowd operates as a platform where you can find BIM modeling & design services and architectural BIM modeling experts who can help your company keep up with the changes taking place in the industry.
There’s no question about the significant growth in popularity that BIM or Building Information Modeling has been getting these past few years. On the off chance that it’s your first time learning about BIM, it’s often described as a new way of going about the documentation and design of construction projects.
BIM comprises the virtual representations of actual pieces and parts used to construct a building. These BIM elements have the logical and physical characteristics of their counterparts in the real world. Simply put, BIM elements are digital prototypes of the physical elements of a building. With the help of BIM, you can build something virtually before you build it physically.
Users of BIM list several benefits it offers at different phases of the construction project, including estimation, scheduling, risk analysis, more effective management of facilities, and developing a more collaborative process among all stakeholders. However, BIM can offer more in other specific aspects and areas. One particular case is how it provides substantial advantages to contractors who work on mechanical, electrical, plumbing, and fire protection or MEP/FP design and construction. Using BIM in MEP/FP modeling streamlines projects improves collaboration, and reduces waste and risk.
BIM proves beneficial in MEP/FP through its application in 3D modeling design services, shop drawing services, fabrication drawing services, builder’s working drawings, comprehensive section reviews, collision detection, bill of materials, scheduling, and more. These benefits are equally applicable to both electrical and mechanical fields.
Benefits of integration of architectural BIM services in the MEP/FP design process
Complete BIM integration has been proven to be greatly beneficial. If you’re still unsure as to how architectural BIM services can complement the MEP/FP design process, here are a few points to convince you further:
The 3D advantage
The first is the most basic BIM modeling service benefit. However, 3D designs of ductwork and piping can help MEP/FP contractors save more effort and time. Thanks to these designs, they can better visualize and understand their clearances and know how to add equipment or make adjustments before its final implementation in the field.
They can also view the model from all possible angles, for example, which include the interface of the processes. It can also be used for redesigning the model and making further enhancements along the way.
Interference prevention
How often have you heard horror stories about electrical trays and plumbing being installed haphazardly? This clash, mainly when several players are involved in the project’s different facets, is typical in construction projects.
The bright side is that it is possible to detect these clashes with the help of BIM during the design stage to solve them immediately. Clash detection includes but is not limited to Hard Clash, Soft Clearance Clash, 4D/Workflow Clash, and the like. You can imagine how much money and time you can save if delays are prevented before they happen.
BIM software consists of tools for budget management and cost estimation. It simplifies estimating their work’s cost more simplified for MEP/FP engineers to ensure that they stick to their budget. With the help of BIM, MEP/FP engineers can also pinpoint areas where they can further lower costs and enhance their systems’ efficiency in general.
Improved visualization
BIM offers a building representation in 3D that allows MEP/FP engineers to visualize how the finished product will look. It makes it possible for MEP engineers to detect potential problems early on in the process and make the necessary adjustments before the start of construction. BIM also offers MEP/FP engineers an enhanced understanding of how their systems and the rest of the building will interact to improve the overall quality of their work.
Gain total control
MEP/FP contractors can also use BIM to get a bird’s eye view of different components, including ceiling elevations, the plumbing layout, the walls with electrical wires, and the rest. They only need to use a single platform to access these details.
The common platform also serves as the single version of truth for every stakeholder involved in the project. It gives them total control over the project’s scope of work and saves them from more agony since flaws can be detected early on. All of these mean that there will no longer be unwanted wastage of resources because of errors.
Enhanced collaboration
BIM modeling & design services allow MEP/FP engineers to work hand in hand in real-time with contractors, architects, and the rest of the stakeholders. It enhances their communication lines and ensures everyone stays on the same page from construction to completion. BIM also allows MEP engineers to corroborate their work with other trades and pinpoint possible conflicts early on to reduce the risk of delays and rework.
Better management of the project
BIM modeling & design offers a centralized single platform for managing each aspect of a building project, from design to construction. MEP/FP engineers can then use it to efficiently manage resources, track progress, and coordinate with the rest of the stakeholders.
Architectural BIM services can also help MEP/FP engineers meet their deadlines, project requirements, and budgets to improve their work’s overall efficiency.
Higher safety levels
BIM also comes in handy in simulating various construction scenarios, such as possible safety hazards. It lets MEP/FP engineers determine and address risks before the start of construction to improve worksite safety for all workers. MEP/FP engineers can also use architectural BIM modeling services to ensure the correct installation of their systems and compliance with all relevant standards for safety.
Augmented accuracy
BIM software allows MEP/FP engineers to develop accurate models and visualize their systems, including plumbing and electrical systems. It helps ensure the correct installation of the systems and lowers the risk of rework and errors. BIM also makes it easier for the MEP/FP engineers to confirm that their systems adhere to all relevant standards and codes to help improve their work and its overall quality.
Procurement and logistical planning
It’s no secret that MEP/FP work is rather complex. Several large and small components like pipes and wires occupy space, financial resources, and planning bandwidth. To prevent chaos, BIM can help streamline different activities, including material procurement and procurement planning. It helps ensure that elements made offsite will fit perfectly in their respective spots.
It also helps MEP/FP contractors order and deliver only the required materials on-site. It results in better estimates to help you save money by eliminating over-ordering. In addition, it also gets rid of the hassles of offsite or on-site bulk storage of materials.
Prototypes made faster
In the ever-evolving field of construction, integrating 3D printing services and rapid prototyping services is a game-changer. Since the first 3D-printed house milestone in 2017, MEP/FP contractors have been blending 3D printing with BIM for groundbreaking results. This fusion enables the creation of rapid prototypes, providing stakeholders with a tangible, detailed representation of complex designs and enhancing communication and project clarity. This innovative approach streamlines the construction process and offers cost-effective, efficient solutions, revolutionizing building and design.
Address challenges
There are instances when smaller components can become significant challenges for MEP/FP contractors. It’s easier for them to model the bigger components to their precise measurements instead of handling the smaller ones. BIM modeling can solve this challenge for contractors by allowing them to design, model, and eventually develop the smaller parts quickly in the most detailed way possible.
Streamlined processes for design and construction
Architectural BIM services allow MEP/FP engineers to create accurate and detailed models of their systems that reduce the need for site visits and manual calculations. MEP/FP engineers can also use BIM to harmonize their work with the rest of the trades and manage the construction process to cut down on the possibilities of rework and delays.
Sustainable benefits
MEP/FP contractors who wish to go green can also use BIM modeling services and make the most of their sustainable benefits. Since the BIM model offers a common platform where stakeholders can collaborate, they can easily use it to consider the energy properties and materials throughout the design stage. This is where the inputs of MEP/FP design can substantially impact. Better integrated BIM designs can help in the construction of more energy-efficient buildings.
Welcoming BIM innovations in the MEP/FP design process
BIM has a significant potential to become the most powerful partner for MEP/FP contractors. It offers a long list of benefits. However, the exciting technology’s improved collaboration and planning capacities can drive better control of resources, early detection and solving of problem areas, and more integrated efforts.
How Cad Crowd can help
Cad Crowd can link you with the best and top-of-the-line architectural BIM services to complement your company’s MEP/FP design process to generate better results.
